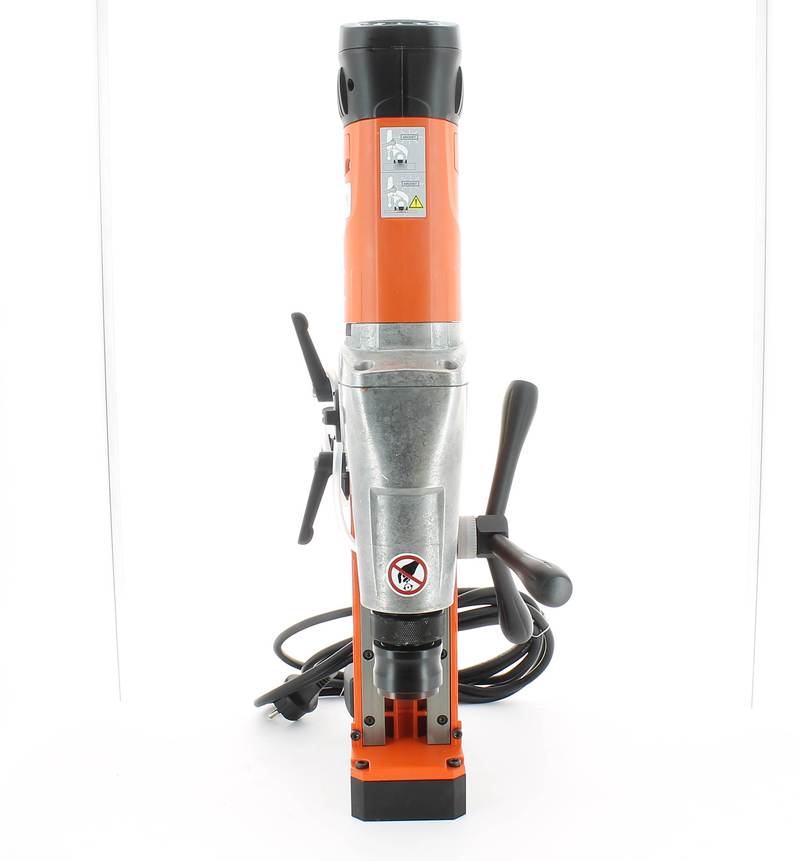

Magnetic drill fein "2026" - kbm 50 u - quickin attachment

Professional Magnetic Drill Fein KBM50U - Top Quality!!!

Lightweight, 2-speed magnetic core drill with extremely long stroke, left/right rotation, CM3 tool holder and maximum functionality for flexible working in the workshop and on the construction site.

⚛ Simple and intuitive controls, clearly visible to the user.
⚛ Ideal for using large drilling tools thanks to the double motor guide.
⚛ Right/left rotation.
⚛ Electronic speed regulation.
⚛ FEIN high-performance motor with stable speed.
⚛ High magnetic holding force.
⚛ Practical magnetic holding force indicator.
⚛ Integrated coolant tank.
⚛ Advance knob mountable on both sides.
⚛ CM3 attack.

MAIN FEATURES

➕Extremely wear-resistant machines with rotatable protective sheath of the motor cable for use under particularly difficult conditions in the industrial and craft sectors.

➕Low weight thanks to compact design and high-performance FEIN 1200W motor with electronic speed control for reliable and economical working.

➕Thanks to the left/right rotation, the electronic speed control and a total length of 315 mm it can be used universally, for example for drilling with core bits and twist drills, for tapping, countersinking and reaming.

➕CM3 tool holder attachment

➕Simple and intuitive controls, clearly visible to the user.

➕Practical magnetic holding force indicator.

➕High magnetic holding force.

➕Integrated coolant tank.

➕Advance knob mountable on both sides.

➕Memory Function"Memory function ...

➕Safety differential switch

TECHNICAL DATA

• Rated power consumption: 1200W
• Power output: 610W
• No. of revolutions under load 1st gear: 130-230 1/min
• No. of revolutions under load 2nd gear: 260-520 1/min
• Tool holder: cm3
• Max crown tip diam.: 50mm
• Max diam. hss core cutter: 40mm
• Max drilling depth w/crown: 50*(75)mm
• Max. diameter of the helical tip: 23mm
• Tapping: M16
• Max. flaring diameter: 50mm
• Max boring diam.: 23mm
• Crown cutter attachment: Quickin
• Changing a crown bit: without service keys
• Stroke: 145mm
• Total stroke: 315mm
• Magnetic holding force: 12,500N
• Magnetic base size: 195x90mm
• Cable with plug: 4m
• Weight: 14kg

VIBRATION AND NOISE EMISSION VALUES

• Sound pressure level LpA: 82.1 dB
• Uncertainty of the measured value KpA: 5 dB
• Sound power level LWA: 93.1 dB
• Uncertainty of the measured value KWA: 5 dB
• Peak sound power value LpCpeak: 96.2 dB
• Uncertainty of the measured value KpCpeak: 5 dB
• Vibration exposure limit value 1 αhv 3-way: <2.5 m/s²
• Uncertainty of the measured value Kα: 1.5 m/s²

INCLUDED:

• 1 briefcase;
• 1 coolant tank;
• 1 fixing strap;
• 1 x chip hook;
• 1 centering pins.
