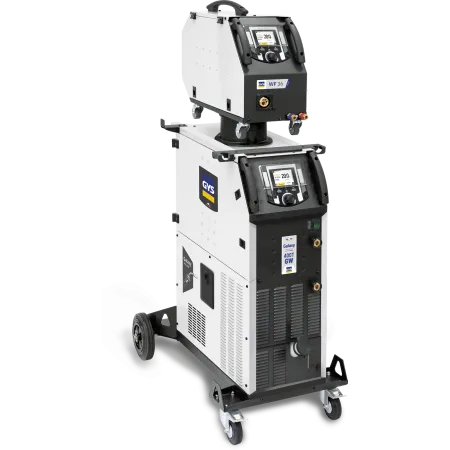

Gys pack wire welder - galaxy 400t gw 1 - with accessories

Gys pack wire welder - galaxy 400t gw 1 - with accessories.

The GALAXY 400T GW is a three-phase multi-process power source with a separate wire feeder and integrated cooling unit. Its pulsed MIG/MAG mode offers very precise control of the welding energy, reducing the deformation of the workpieces being welded. Pulsed synergies increase welding speed and reduce spatter, while improving the aesthetics of the weld bead. Excellent for welding thin aluminum and stainless steel, the GALAXY 400T GW with the optional WF 36 wire feeder is the modern workshop solution for smooth, contact-free welding.

COMPLETE PACKAGE OF:

	MIG torch 500A - liquid - 4m - steel (Ø1.2mm-M8)
	Ground cable 600A - 70mm² - 4m - CONNECT. 35/50mm² Jaw pliers.
	MIG-i connection cable bundle - water - 10m - Ø 70mm²
	Air/water wire feeder WF 36

MULTIPROCESS.

• Pulsed MIG/MAG:
  - steel and stainless steel wire: Ø 0.6 to 1.2 mm.
  - aluminium wire: Ø 0.8 to 1.2 mm.
  - cored wire (polarity reversal): Ø from 0.9 to 1.6 mm.
• MMA DC / Pulsed : basic and rutile electrodes.
• TIG DC Lift / Pulsed.

PREMIUM MIG/MAG WELDING.

• 4 welding modes:
  - Standard: ideal for simple and quick welding applications;
  - Pulsed: reduces spatter and rework in all welding positions;
  - ModulArc: ideal for the assembly of aluminium alloys that require impeccable aesthetics;
  - Manual: Suitable for experienced welders and soldering within a DMOS.
• Digital arc control with instant start and no craters at the end of the bead.
• The pulsed arc allows for up to 30% higher welding speeds.
• 4-roller motorized wire feeder with digital encoder for perfect unwinding

INTELLIGENT.

• +40 synergies on a range of materials: steel, AlMg, AlSi, CrNi, CuSi.
• New intuitive and multilingual 3.5'' HMI.
• Complete machine and synergy updates via USB stick.
• Memory for up to 200 welding programs (Jobs) for repetitive tasks.
• Portability function, with the ability to load/save/transport user JOBS and machine configuration from a USB stick.
• Traceability of all welding seams in accordance with EN 3834.
• Welding accessories calibration mode to adjust the displayed voltage.
• User mode for sharing the product with multiple welders.
• Free online interface customization tool.

ERGONOMIC.

• Integrated cooling unit (800W).
• Double screen for easy adjustment when the wire feeder is hanging and inaccessible.
• Reinforced wheels to ensure stability and maneuverability.
• Connection of the cable harness on the back of the generator without tools.
• 4 lifting points for easy slinging and safe transport.
• Gas bottle holder lowered for easier changing (10 m3 max).
• IP23S protection rating to withstand the harshest environments.
• Large storage compartment.

2 display modes: Easy, simplified interface for welders of all levels - no extensive training required. Expert, Expert interface dedicated to the expert welder with the possibility of adjusting all the parameters of the welding cycle.
