Screws for high performance concrete, galvanised steel for installations in seismic areas C2 quick to install, adjustable, removable, and reusable

ULTRACUT FBS II 8-14 US with a hexagonal head are characterized by the rosette already integrated.

Up to three screw-in depth to be certified for a maximum of flexibility in the load and in the thickness of the object to be fixed.

The special geometry of the saw-tooth lets you thread quickly the concrete.

No hole cleaning required for installation on the ceiling, to the floor by drilling a hole deeper than 3 times the diameter, or by using hollow points with suction.

The anchor does not cause tensions in the material of the support (operating undercut), while the minimum spacing and edge distances possible.

The certification ETA allows applications in concrete cracked and non-cracked and for the categories of seismic performance of C1 and C2.

The disk FFD must be positioned between the plate and the screw ULTRACUT FBS II US when you request the category of seismic performance C2. The side flare of the disk FFD must be facing toward the anchor plate. The thickness of the disk FFD must be added to the thickness of the plate to be fixed in the calculation of the actual depth of insertion of the screw in the concrete.

The certification ETA allows you to adjust the application of the 2 times, by loosening the screw to concrete, max 20 mm) for insert thickness (max 10 mm) and/or align the base plate.

The approval from the German allows the re-use of screw anchors for temporary (e.g. construction formwork) through the control cylinder FUP.

Approved for:

Concrete from C20/25 to C50/60, cracked

Concrete from C20/25 to C50/60, non-cracked

Also suitable for:

Concrete C12/15

Masonry in solid brick

Aerated concrete autoclaved

Natural stone with compact structure

Steel construction

Shelving

Barriers shock-resistant protection

Base plates

Metal profiles

Facades

Stairs

Railings

Deleted

Balustrades

The dividers

Protection elements

Temporary anchorage equipment to the construction site

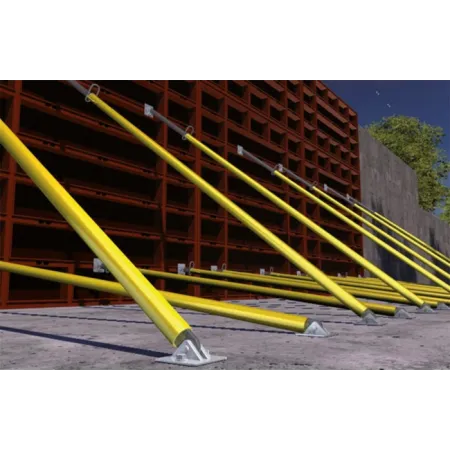

Props formwork

Approval

ETA-15/0352

DoP n. 0078

Z-21.8-2049

TECHNICAL DATA

Depth min hole for installation of through - 65 [mm]

Thickness fixable max (standard) 5 [mm]

The length of the screw 55 [mm]

Certification of seismic C2

Hole diameter 8 [mm]

Depth ca c. e il f. with the thickness fixed 50 / 5 [mm]

Depth ca c. e il f. with a thickness of fixable - / - [mm]

Depth ca c. e il f. with a thickness of fixable - / - [mm]

Torque wrench / Fingerprint T40/SW13
