Fischer sxrl-fus anchor - 10x100 - w/torx screw.
The fischer SXRL FUS extended fastening is certified together with the fischer screw with hexagonal flange head and TX socket for series fastening of non-load-bearing systems in masonry, concrete and cellular concrete. The two expansion zones induce forces equally within the semi-solid bricks, these combine to form a long expansion element on autoclaved aerated concrete and solid building materials. The extended fastening with safety screw made of galvanized steel is suitable for fastening in sub-structures for facades, false ceilings and metal roofing.
Advantages.
- Also certified for cellular concrete: it has a triple installation depth (50, 70 and 90 mm) to be able to choose according to the intensity of the load.
- Double expansion stage: thanks to the special geometry of the dowel, the anchoring forces are evenly distributed on the walls of the hole.
- ETA approval: allows use on numerous building materials, while ensuring secure fixing.
- Double anti-rotation devices: the four fins near the collar and the two additional extended fins on the expanding body prevent the rotation of the plug during screwing.
- Wide dimensional range: fixable thicknesses from 10 to 290 mm.
Certified for:
- Semi-solid brick (vertically perforated) in clay
- Aerated concrete (cellular)
- Hollow lightweight concrete blocks
- Semi-solid brick (vertically perforated) in calcium silicate
- Blocks with thermal insulation
- Hollow block in normal and lightweight concrete
- Solid brick in clay
- Solid calcium silicate brick
- Concrete ≥ C12/15
Also suitable for:
- Compact natural stone
- Solid plaster panels
Applications .
- Facades, false ceilings and roof substructures in wood and metal.
- TV Console
- Kitchen wall units
- Wardrobe
- Wooden frames

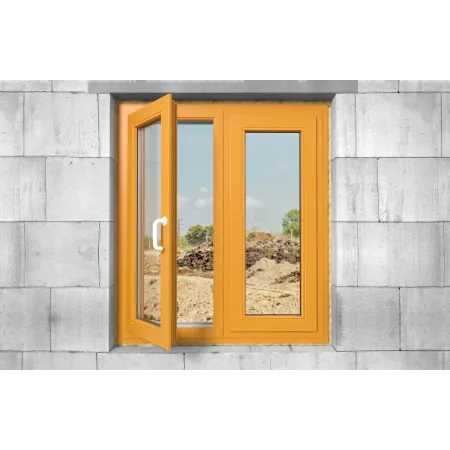

- Windows and doors
- Doors and gates.
Support materials.
Certified for:
- Semi-solid brick (vertically perforated) in clay
- Aerated concrete (cellular)
- Hollow lightweight concrete blocks
- Semi-solid brick (vertically perforated) in calcium silicate
- Blocks with thermal insulation
- Hollow block in normal and lightweight concrete
- Solid brick in clay
- Solid brick made of lime silicate.
Assembly.
- The SXRL design is intended to have, in a single piece, two different expansion modes: one for solid and semi-solid materials, and one for cellular concrete.
- The SXRL plug is suitable for pass-through installations.
- On semi-solid supports, drill only by rotation (without rotary hammering).
We recommend:
- SXRL-T (with countersunk head screws with TX imprint) for fixing wooden structures;
- SXRL-FUS (with flat edge, flanged screw with hexagonal head with TX socket) for the installation of metal structures.
TECHNICAL DATA
Hole diameter (d0): 10 mm
Fixing length (l): 100 mm
Tool holder: TX40 / SW 13
Usable length for anchoring depth 50 mm (tfix): 50 mm
Usable length for anchoring depth 70 mm (tfix): 30 mm
Usable length for anchoring depth 90 mm (tfix): 10 mm
