Tassello sxrl-wt fischer - sxrl 8x120 wt - c/vite

Fischer sxrl-wt anchor - sxrl 8x120 wt - w/screw.

Fischer SXRL-WT ls with flat countersunk head screw and TX imprint is the extended anchor for pass-through installations. Certified for use with clay bricks, calcium silicate bricks, aerated concrete, hollow concrete blocks. It can also be used with compact natural stone and solid gypsum panels. It is a anchor designed to have two different expansion modes: one for solid and semi-solid materials and another for cellular concrete. The ETA certification allows its use on numerous building materials, ensuring quick and safe fixing.

MAIN FEATURES.

• The SXRL design is intended to have, in a single piece, two different expansion modes: one for solid and semi-solid materials, and one for cellular concrete.

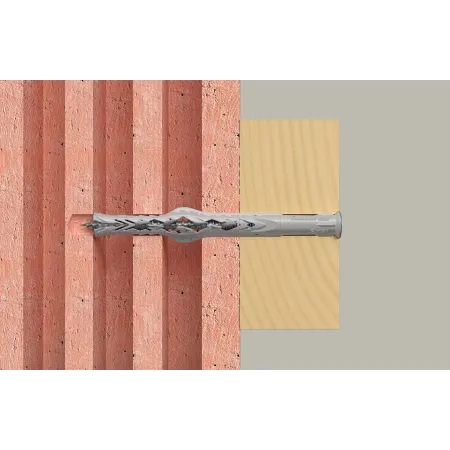

• The SXRL plug is suitable for pass-through installations.
• Version with flat countersunk head screw and torx socket

ADVANTAGES.

• Double expansion stage: thanks to the special geometry of the dowel, the anchoring forces are distributed evenly on the walls of the hole
• Double anti-rotation devices: the four fins near the collar and the two additional extended fins on the expanding body prevent the rotation of the plug during screwing
• Wide dimensional range: fixable thicknesses from 10 to 90 mm.

Applications.

• Facades, false ceilings and roof substructures in wood and metal
• TV Console
• Kitchen wall units
• Wardrobe
• Wooden frames
• Windows and doors
• Doors and gates

Support materials.

Suitable for:

• Semi-solid brick (vertically perforated) in clay
• Aerated concrete (cellular)
• Hollow lightweight concrete blocks
• Semi-solid brick (vertically perforated) in calcium silicate
• Blocks with thermal insulation
• Hollow block in normal and lightweight concrete
• Solid brick in clay
• Solid calcium silicate brick
• Concrete ≥ C12/15
• Compact natural stone
• Solid plaster panels

Assembly.

• The SXRL design is intended to have, in a single piece, two different expansion modes: one for solid and semi-solid materials, and one for cellular concrete.
• The SXRL plug is suitable for pass-through installations.
• On semi-solid supports, drill only by rotation (without rotary hammering).

We recommend:

• SXRL-T (with countersunk head screws with TX imprint) for fixing wooden structures;
• SXRL-FUS (with flat edge, flanged screw with hexagonal head with TX socket) for the installation of metal structures.

TECHNICAL DATA

Hole diameter (d0): 8 mm
Fixing length (l). 120 mm
Tool attachment: TX30
Max fixable thickness (t fix): 50 m
